3M Littmann

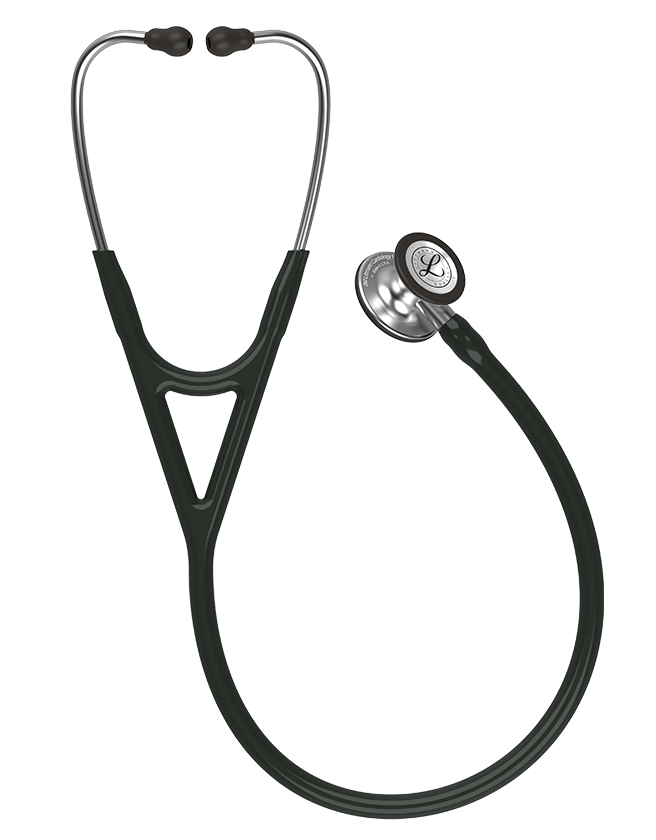

The 3M™ Littmann® Cardiology IV™ Stethoscope is designed for clinicians who require outstanding acoustic performance combined with exceptional versatility. Its innovative design provides a single-piece tunable diaphragm on each side of the chestpiece.

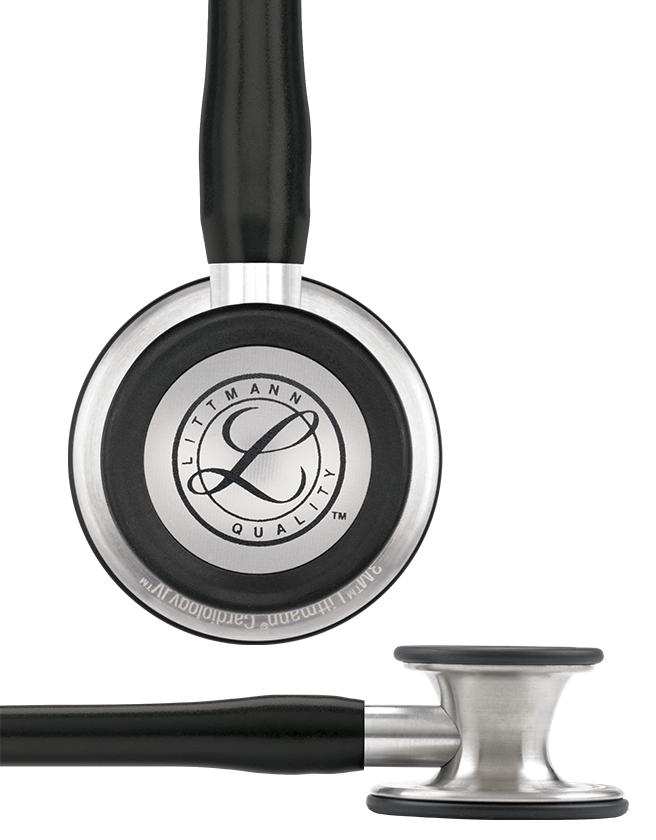

The 3M™ Littmann® Cardiology IV™ Stethoscope is the next generation of one of the most recognised stethoscopes in the profession, offering improved acoustic performance with better audibility of high-frequency sounds (adult side, firm pressure). Its distinctive chalice-shaped chestpiece features tunable diaphragms on both sides to deliver outstanding acoustic performance, diagnostic versatility, and convenience for treating adult and pediatric patients. The pediatric side of the chestpiece converts to a traditional open bell by removing the tunable diaphragm and replacing it with the included non-chill bell sleeve.

Both the adult and pediatric sides of the chestpiece have single-piece diaphragms that are easy to remove, attach and clean because the surfaces are smooth and without crevices.

Tunable diaphragm technology—a 3M invention—lets clinicians hear different frequency sounds by simply adjusting the pressure on the chestpiece. Hold the chestpiece with light pressure to hear low frequency sounds; press a little more to hear higher frequency sounds. This time-saving feature allows the clinician to focus on the patient, while the non-chill rim provides patient comfort.

Headset tension is easily adjusted for head size and comfort by squeezing together or pulling apart the eartubes. Snap-tight, soft-sealing eartips conform to individual ears for an excellent acoustic seal and comfortable fit. Eartips snap firmly onto the ends of the eartubes and, for safety, require a significant effort to remove.

Dual-lumen tubing combines two sounds paths in one tube, eliminating the rubbing noise that traditional double tubes create. This feature makes it possible for the clinician to hear patient sounds with less interference.

Resilient next-generation tubing retains its shape and flexibility even after folding tightly into a pocket. It provides longer stethoscope life due to improved resistance to skin oils and alcohol, and is less likely to pick up stains. Next-generation tubing is not made with natural rubber latex, a benefit to sensitive clinicians and their patients. And, to play its part in the protection of human health and the environment, the next-generation tubing is not made with phthalate plasticizers.

The Cardiology IV stethoscope isn’t just for cardiologists. It is used by specialists and general practice physicians, critical care nurses, EMTs, medical students, and other healthcare professionals to identify, listen to, and study cardiac, lung, and other body sounds in adult and pediatric patients. The Cardiology IV stethoscope is made in the USA and is supported by a seven-year warranty. It comes complete with large and small soft-sealing eartips, large firm eartips, non-chill bell sleeve, and instructions.

3M™ Littmann® Stethoscopes are used by millions of medical professionals around the world who are dedicated to achieving the best patient outcomes. Littmann stethoscopes offer superb acoustic performance, consistently high quality, and outstanding value. Wearing a Littmann stethoscope is an expression of your commitment to medicine, and personal success.

  • Outstanding acoustics with better audibility of high-frequency sounds (adult side, firm pressure).
  • Tunable diaphragm: Hear high or low frequency sounds by slightly adjusting pressure on the chestpiece.
  • Dual-lumen tubing: Two sound paths in one tube eliminates the rubbing noise of traditional double tubes.
  • Next-generation tubing lasts longer and resists stains. Not made with natural rubber latex or phthalate plasticizers.
  • Headset is easily adjusted for individual fit and comfort. Angled eartubes align with ear canals.
  • Seven-year warranty provides greater peace of mind.
  • Tunable, dual-sided stainless steel chestpiece with open or closed bell
  • Non-chill bell sleeve for greater patient comfort
  • Soft-sealing ear-tips provide optimal comfort and excellent sound occlusion

Specifications

Applications

Physical Assessment and Diagnosis

Approved Environmental Marketing Claim (EMC)

3M™ Littmann® tubing does not contain phthalate plasticizers. It provides longer stethoscope life due to improved resistance to skin oils and alcohol, and is less likely to pick up stains.

Binaural Construction

Double Lumen

Brand

Littmann®

Chestpiece Finish

Machined stainless steel

Chestpiece Technology

Double-sided

Chestpiece Weight (metric)

87 g

Diaphragm Diameter (metric)

4.3 cm

Diaphragm Material

Epoxy/Fibreglass

Diaphragm Type

Tunable, single-piece

Eartip Type

Soft Sealing

Environmental claim being made

Yes

Environmental claim relates to

Product

Evidence for Claim

Self Certified

Extra Eartips

Yes

Headset Material

Anodized Aluminum

Model

Cardiology IV™

Occupation

Anaesthetist, Cardiologist, Emergency Physician, Ambulance Service and Paramedic, General Practioner, Intern, Nurse, Paediatrician, Physician, Respiratory Specialist

Overall Length (Metric)

69 cm

Performance

9

Product Type

Stethoscope

Size

69cm

Small Diaphragm Diameter (metric)

3.3 cm

Special Adaptors

No

Tube Colour

Black

Please note: No change of mind returns or exchanges available on Stethoscopes due to hygiene reasons

When you buy online from an authorised 3M™ Littmann® Australia distributor, you can rest assured your stethoscope purchase is genuine and backed by an authentic 3M™ Littmann® local warranty.

(LITTMANN-6152)

SKU LITTMANN-6152
Brand 3M Littmann
Shipping Weight 0.3620kg
Shipping Width 0.160m
Shipping Length 0.325m
Unit Of Measure each
